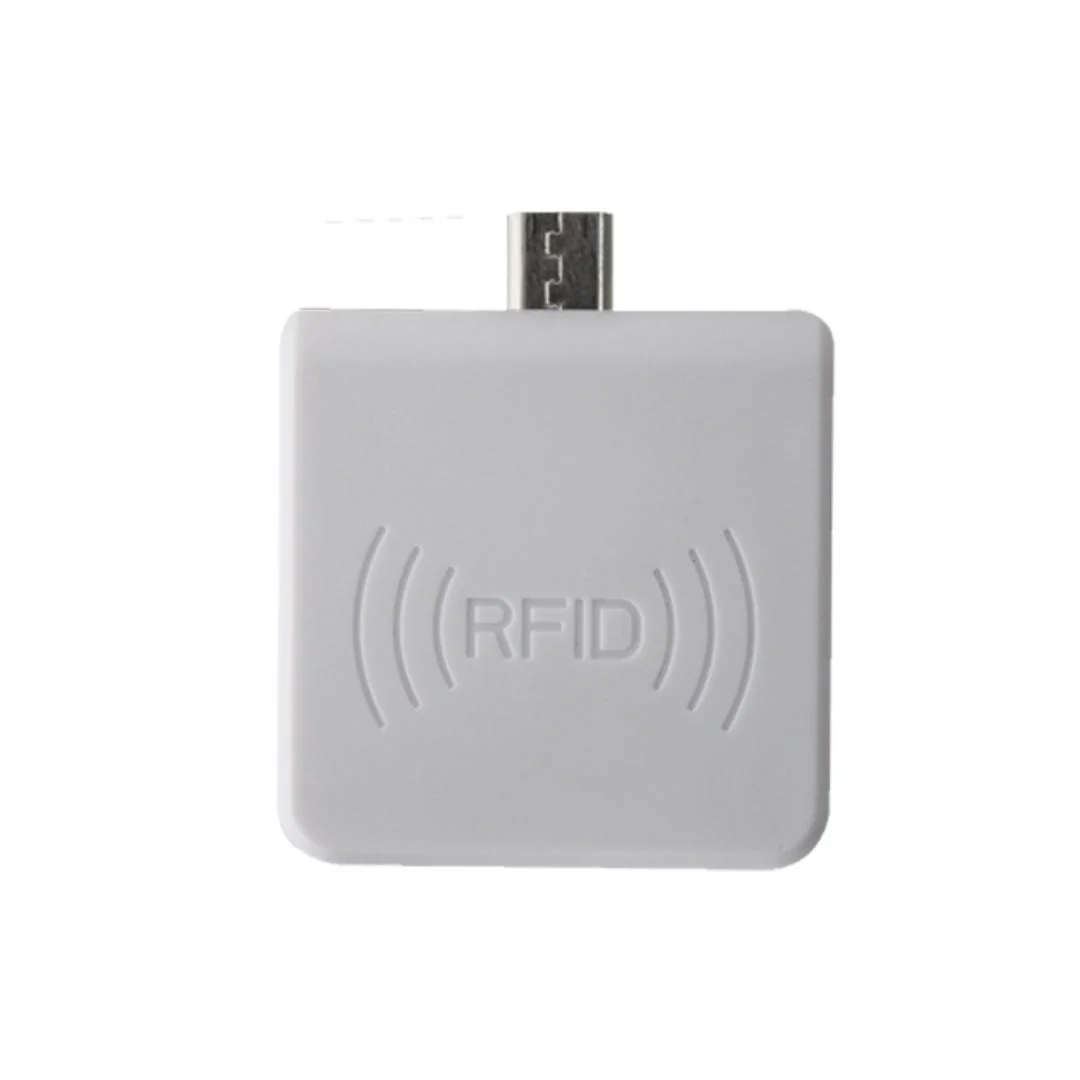

Smart Micro USB Reader (P-ML800L)

Parameter

Specification / Standard

Model No.

P-ML800L

Frequency

125 kHz (LF)

Protocol

EM4200/TK4100

Read Range

Up to 1 cm

Communication Phone OS

Android OS

Work Mode

Read-only

Read Speed

0.5 s/time

Read Time

< 100 ms

Read Distance

1–3 cm (environment dependent)

Interface

Micro USB (OTG)

Power Supply

Consumed Current

100 mA

Reading Indicator

Buzzer

Reader Size

35 × 35 × 7 mm

Reader Weight

10 g

Package Size

71 × 71 × 19 mm

Gross Weight

50 g

Service Temp

-20 to +85 °C

SDK

USB, Android/Windows Bluetooth, Android/iOS

Product Capabilities

125 kHz LF Micro USB (OTG) reader — no OTG adapter required
Plug-and-play with Android tablets and smartphones
Ultra-compact, lightweight design (10 g)
Fast read — 0.5 s per read, under 100 ms read time
Read-only operation with buzzer feedback

Common Deployments

Library Management Visitor Management Event Management

General

Model No.	P-ML800L
Frequency	125 kHz (LF)
Protocol	EM4200/TK4100
Read Range	Up to 1 cm

Characteristics

Communication Phone OS	Android OS
Work Mode	Read-only
Read Speed	0.5 s/time
Read Time	< 100 ms
Read Distance	1–3 cm (environment dependent)
Interface	Micro USB (OTG)
Power Supply	5V
Consumed Current	100 mA
Reading Indicator	Buzzer

Physical Parameters

Reader Size	35 × 35 × 7 mm
Reader Weight	10 g
Package Size	71 × 71 × 19 mm
Gross Weight	50 g
Service Temp	-20 to +85 °C

Development Environment

SDK	USB, Android/Windows Bluetooth, Android/iOS

Note: Product specifications, visual appearance, or dimensions may vary as per standard product upgrades, customization, and continuous performance optimization.

Frequently Asked Questions

Do desktop readers need special software?

No. USB keyboard-emulation mode types the tag ID straight into any application — ERP, browser, or spreadsheet — with no drivers.

Can these readers write to tags as well as read?

Yes, read/write models can encode tags, keyfobs, and smart cards at the desk — useful for card issuance and tag commissioning stations.

What's the read distance of a desktop reader?

Desktop proximity readers are deliberately short-range (up to ~10 cm) so operators control exactly which card or tag is read.
