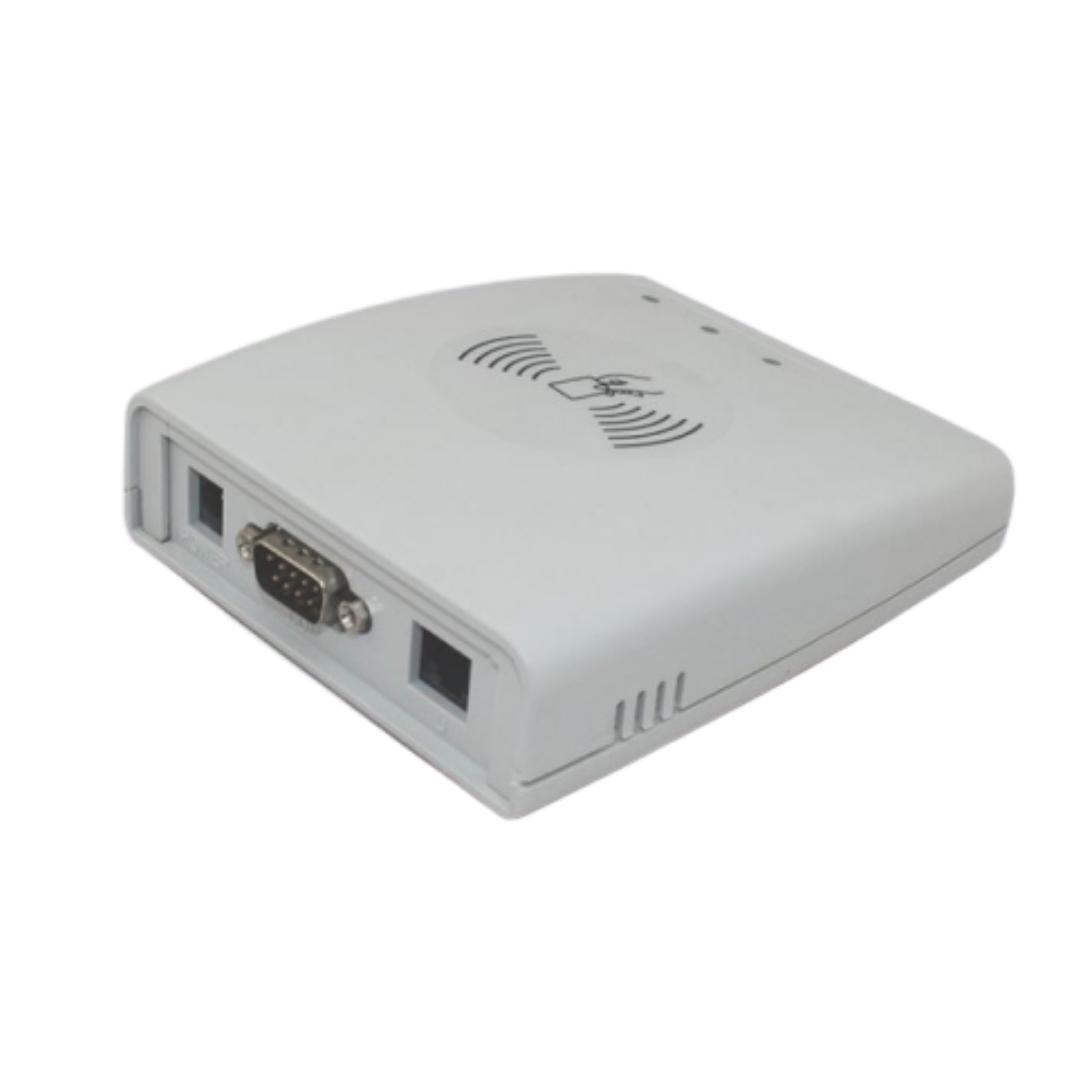

Desktop RFID Reader (P-HF110)

Parameter

Specification / Standard

Model No.

P-HF110

Frequency

13.56 MHz (HF)

Standard

ISO 14443A / ISO 15693

Supported Chip

Mifare / I-Code SLIX

Read Range

Up to 1 cm

Work Mode

Read & Write

Variant Available

RS232 & TCP/IP

Read Time

< 0.5 s

Read Distance

1–10 cm (environment dependent)

Interface

RS232 & TCP/IP

Power Supply

DC +12V

Consumed Current

150–200 mA

Baud Rate

9600

Reading Indicator

Buzzer and LED

Reader Dimensions

123 × 94 × 29 mm

Reader Weight

500 g

Operating Temp

-10 to +70 °C

Storage Temp

-20 to +80 °C

SDK

USB, Android/Windows Bluetooth, Android/iOS

Product Capabilities

HF read & write reader with high accuracy
Supports Mifare and I-Code SLIX chips (ISO 14443A / ISO 15693)
Networked connectivity — RS232 & TCP/IP
Fast read time — under 0.5 seconds
Buzzer and LED reading feedback

Common Deployments

Library Management Visitor Management Event Management

General

Model No.	P-HF110
Frequency	13.56 MHz (HF)
Standard	ISO 14443A / ISO 15693
Supported Chip	Mifare / I-Code SLIX
Read Range	Up to 1 cm

Characteristics

Work Mode	Read & Write
Variant Available	RS232 & TCP/IP
Read Time	< 0.5 s
Read Distance	1–10 cm (environment dependent)
Interface	RS232 & TCP/IP
Power Supply	DC +12V
Consumed Current	150–200 mA
Baud Rate	9600
Reading Indicator	Buzzer and LED

Physical Parameters

Reader Dimensions	123 × 94 × 29 mm
Reader Weight	500 g
Operating Temp	-10 to +70 °C
Storage Temp	-20 to +80 °C

Development Environment

SDK	USB, Android/Windows Bluetooth, Android/iOS

Note: Product specifications, visual appearance, or dimensions may vary as per standard product upgrades, customization, and continuous performance optimization.

Frequently Asked Questions

Do desktop readers need special software?

No. USB keyboard-emulation mode types the tag ID straight into any application — ERP, browser, or spreadsheet — with no drivers.

Can these readers write to tags as well as read?

Yes, read/write models can encode tags, keyfobs, and smart cards at the desk — useful for card issuance and tag commissioning stations.

What's the read distance of a desktop reader?

Desktop proximity readers are deliberately short-range (up to ~10 cm) so operators control exactly which card or tag is read.
