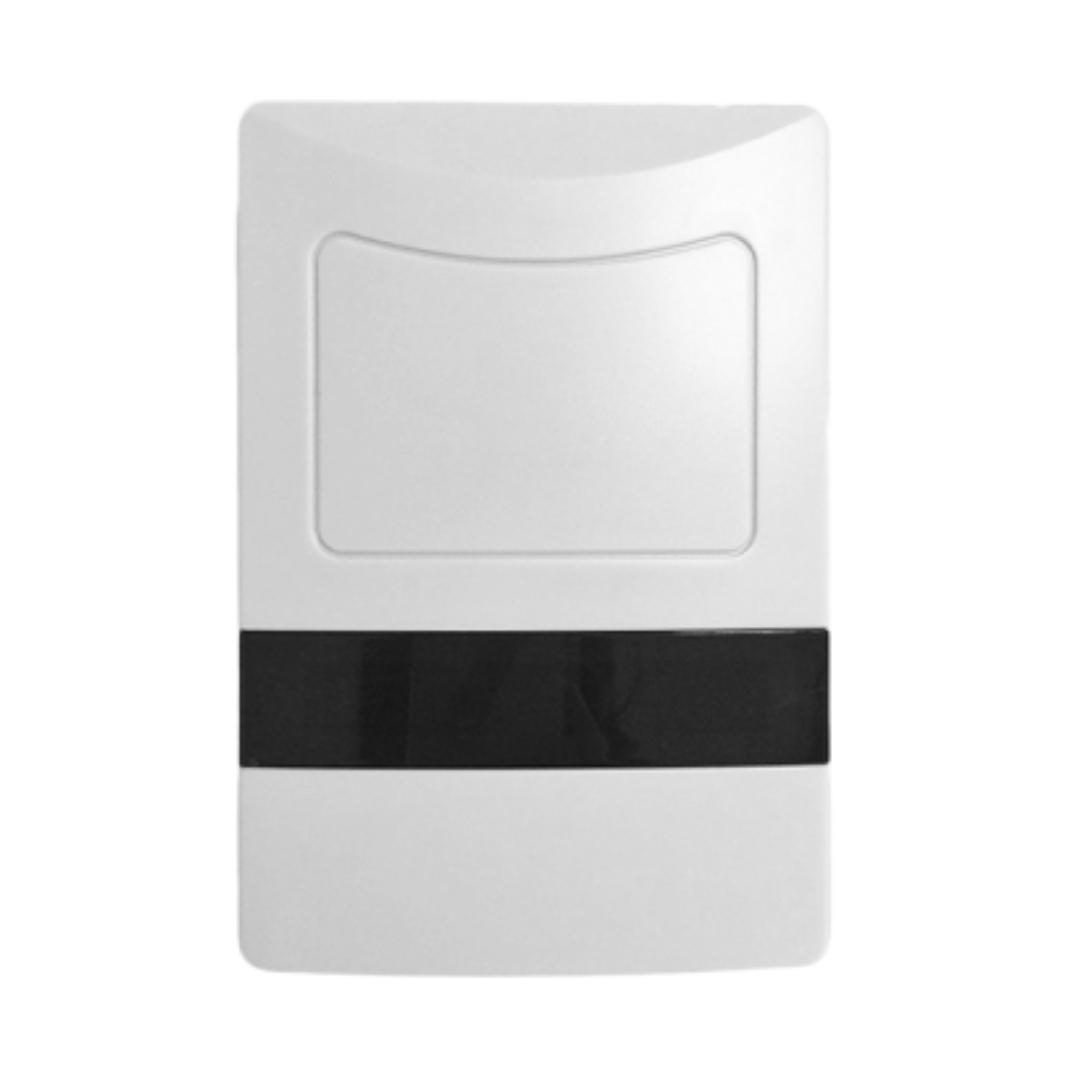

P-107 is a High-performance UHF RFID Reader. It is designed upon fully self-intellectual property. Based on an efficient digital signal
| Parameter | Specification / Standard |
|---|---|
| Model No. | P-107 |
| Frequency | 865–868 MHz (UHF) |
| Protocol | ISO 18000-6B/6C (EPC Gen2) |
| Read Range | Up to 0.5 m (ideal) (tag & environment dependent, adjustable) |
| Built-in Antenna | 2.5 dBi |
| Work Mode | Auto-running and Interactive |
| Variant Available | 2.5 dBi Antenna LAN / Serial / USB |
| RF Power | 0–30 dBm (adjustable) |
| Read Distance | 1–100 cm (environment dependent) |
| Interface | RS232 / WG26 / RS485 / TCP/IP (optional) |
| Power Supply | 100–240V, DC +9V (power adapter) |
| Reading Indicator | Buzzer and LED |
| Reader Size | 160 × 110 × 35 mm |
| Reader Weight | 0.2 kg |
| Package Size | 220 × 300 × 100 mm |
| Package Gross Weight | 0.6 kg |
| Operating Temp | -10 °C to +55 °C |
| Storage Temp | -20 °C to +75 °C |
| SDK | USB, Android/Windows Bluetooth, Android/iOS |
P-107 is a High-performance UHF RFID Reader. It is designed upon fully self-intellectual property. Based on an efficient digital signal
| Model No. | P-107 |
| Frequency | 865–868 MHz (UHF) |
| Protocol | ISO 18000-6B/6C (EPC Gen2) |
| Read Range | Up to 0.5 m (ideal) (tag & environment dependent, adjustable) |
| Built-in Antenna | 2.5 dBi |
| Work Mode | Auto-running and Interactive |
| Variant Available | 2.5 dBi Antenna LAN / Serial / USB |
| RF Power | 0–30 dBm (adjustable) |
| Read Distance | 1–100 cm (environment dependent) |
| Interface | RS232 / WG26 / RS485 / TCP/IP (optional) |
| Power Supply | 100–240V, DC +9V (power adapter) |
| Reading Indicator | Buzzer and LED |
| Reader Size | 160 × 110 × 35 mm |
| Reader Weight | 0.2 kg |
| Package Size | 220 × 300 × 100 mm |
| Package Gross Weight | 0.6 kg |
| Operating Temp | -10 °C to +55 °C |
| Storage Temp | -20 °C to +75 °C |
| SDK | USB, Android/Windows Bluetooth, Android/iOS |
No. USB keyboard-emulation mode types the tag ID straight into any application — ERP, browser, or spreadsheet — with no drivers.
Yes, read/write models can encode tags, keyfobs, and smart cards at the desk — useful for card issuance and tag commissioning stations.
Desktop proximity readers are deliberately short-range (up to ~10 cm) so operators control exactly which card or tag is read.
