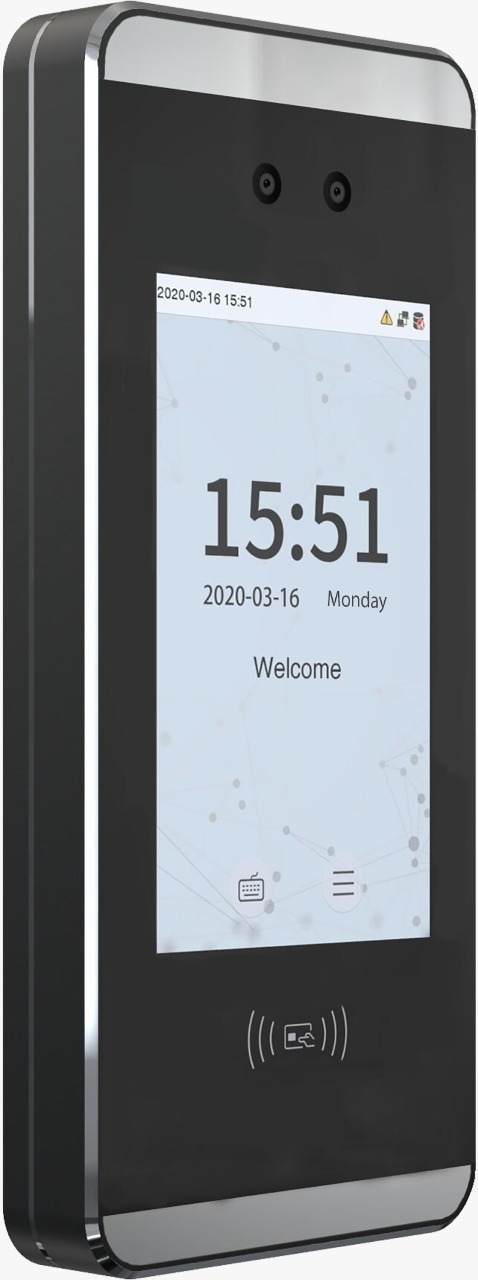

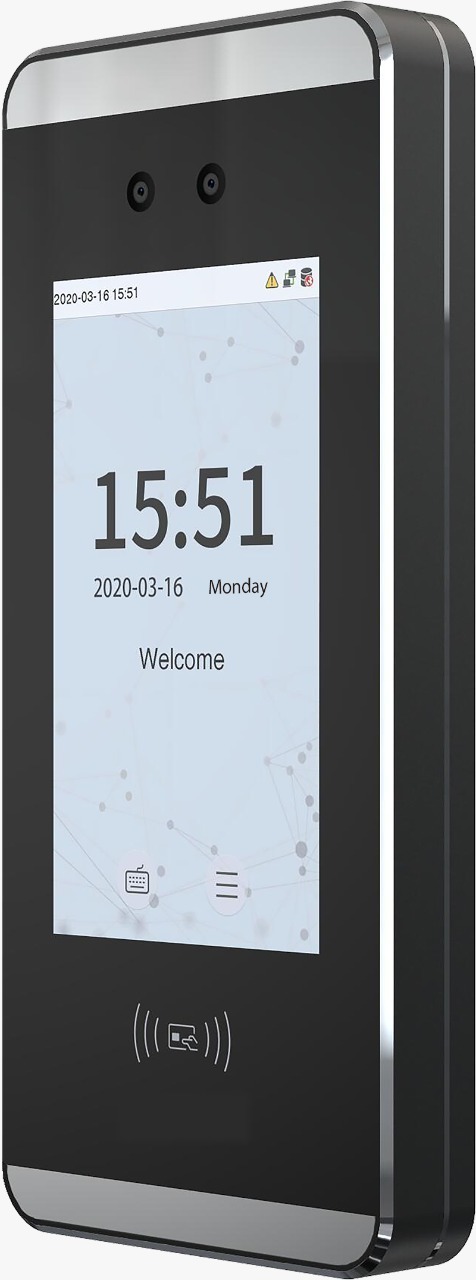

MiniAC+ is a Linux-based, touchless facial recognition time attendance and access control terminal with Face / Card verification, up to 2-metre recognition range, and 3,000 face + 3,000 card capacity.
| Parameter | Specification / Standard |
|---|---|
| Model No. | MiniAC+ (Mini AC Plus) |
| Operating System | Linux |
| Display | 5-inch Touch Screen |
| Biometric Algorithm | ZKFace VX5.8 |
| Dimensions | 91.93 × 202.93 × 21.5 mm (W×H×D) |
| Power Supply | 12V, 3A |
| Face Capacity | 3,000 |
| Card Capacity | 3,000 |
| Transaction Capacity | 150,000 |
| Verification Modes | Face / Card |
| Recognition Distance | Up to 2 metres |
| Card Modules | 125 kHz ID card (EM), 13.56 MHz IC card (MF, optional) |
| Processor | 900 MHz Dual-Core CPU |
| Memory | 512 MB RAM / 8 GB ROM |
| Camera | 2 MP WDR low-light camera |
| Illumination | Adjustable brightness LED |
| Network | TCP/IP |
| Wireless | WiFi (optional) |
| Wiegand | Input/output |
| Supported I/O | 3rd-party electric lock, door sensor, exit button, alarm output, auxiliary input |
| Functions | ID Card, ADMS, T9 Input, DST, Camera, 9-digit User ID, Access Levels, Groups, Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verify Modes |
| Working Humidity | 10% to 90% |
MiniAC+ is a Linux-based, touchless facial recognition time attendance and access control terminal with Face / Card verification, up to 2-metre recognition range, and 3,000 face + 3,000 card capacity.
| Model No. | MiniAC+ (Mini AC Plus) |
| Operating System | Linux |
| Display | 5-inch Touch Screen |
| Biometric Algorithm | ZKFace VX5.8 |
| Dimensions | 91.93 × 202.93 × 21.5 mm (W×H×D) |
| Power Supply | 12V, 3A |
| Face Capacity | 3,000 |
| Card Capacity | 3,000 |
| Transaction Capacity | 150,000 |
| Verification Modes | Face / Card |
| Recognition Distance | Up to 2 metres |
| Card Modules | 125 kHz ID card (EM), 13.56 MHz IC card (MF, optional) |
| Processor | 900 MHz Dual-Core CPU |
| Memory | 512 MB RAM / 8 GB ROM |
| Camera | 2 MP WDR low-light camera |
| Illumination | Adjustable brightness LED |
| Network | TCP/IP |
| Wireless | WiFi (optional) |
| Wiegand | Input/output |
| Supported I/O | 3rd-party electric lock, door sensor, exit button, alarm output, auxiliary input |
| Functions | ID Card, ADMS, T9 Input, DST, Camera, 9-digit User ID, Access Levels, Groups, Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verify Modes |
| Working Humidity | 10% to 90% |
Yes. Attendance events can sync to POXO HRMS or third-party payroll systems via API, removing manual muster exports.
Devices store events locally and sync when connectivity returns; battery-backup options keep doors and attendance running through outages.
Yes. IP-based devices report to a central server or cloud dashboard, so HR can manage attendance policies across plants and branch offices from one place.
