UHF Antenna 12 dbi is a long-range RFID antenna that is used with an RFID UHF reader to scan the RFID tags with a Reading Distance up to 15m
| Parameter | Specification / Standard |
|---|---|
| Model No. | P-12A |
| Frequency | 865–868 MHz |
| Gain | 12 dBi |
| Read Range | Depends on connected fixed reader & environment (12 dBi gain) |
| F/B Ratio | ≥ 25 dB |
| VSWR | ≤ 1.3 |
| Impedance | 50 Ω |
| Max Power | 50 W |
| Polarization | Linear / Circular |
| Connector | N-Female |
| Connector Position | Bottom |
| Operating Temp | -40 to +80 °C |

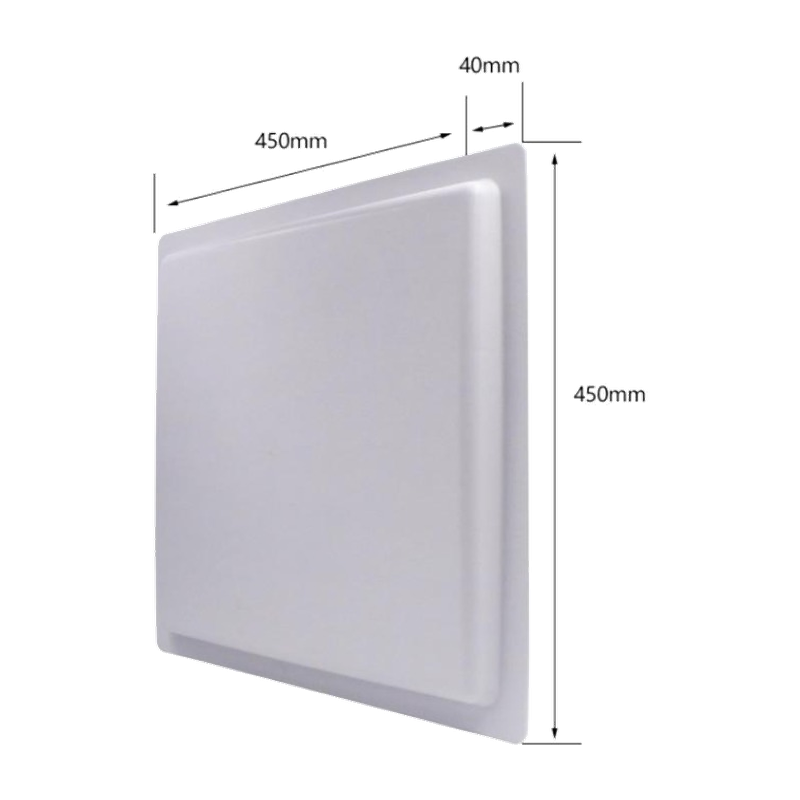

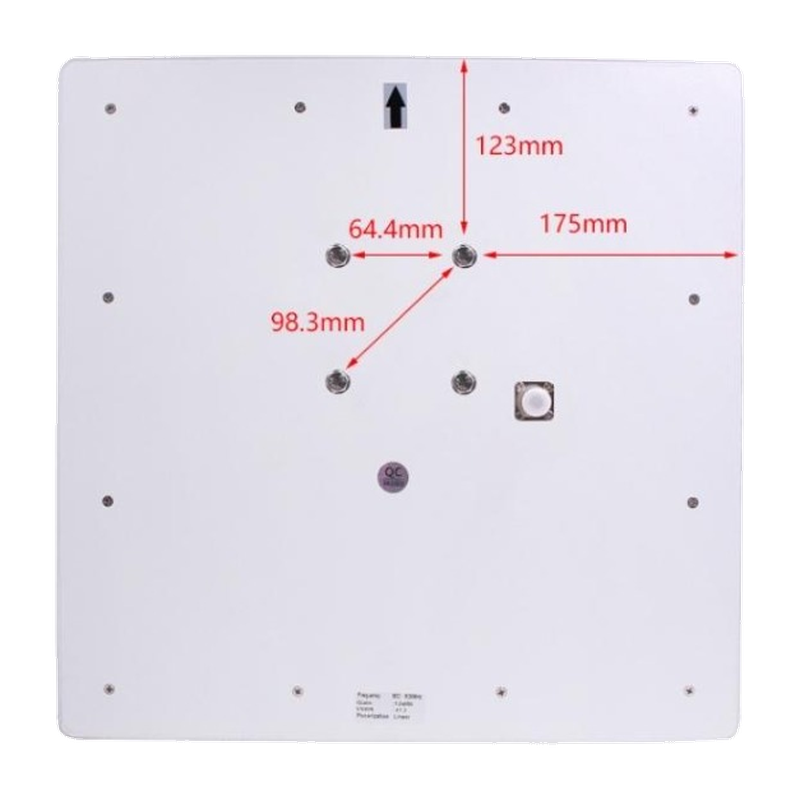

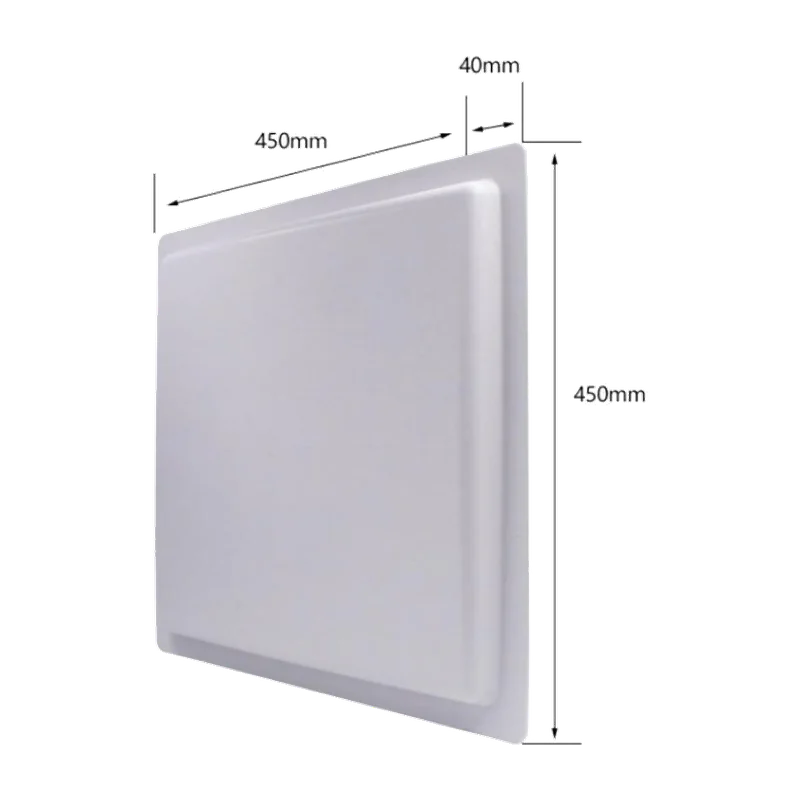

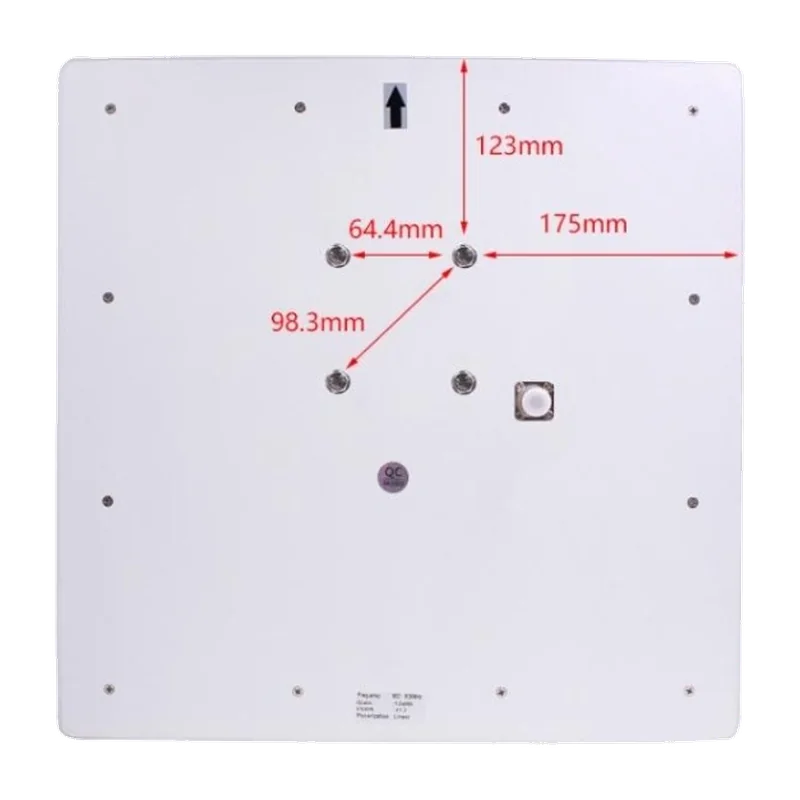

| Antenna Size | 450 × 450 × 40 mm |
| Antenna Weight | 2.5 kg |
| Radome Material | ABS |
| Radome Color | White |
UHF Antenna 12 dbi is a long-range RFID antenna that is used with an RFID UHF reader to scan the RFID tags with a Reading Distance up to 15m
| Model No. | P-12A |
| Frequency | 865–868 MHz |
| Gain | 12 dBi |
| Read Range | Depends on connected fixed reader & environment (12 dBi gain) |
| F/B Ratio | ≥ 25 dB |
| VSWR | ≤ 1.3 |
| Impedance | 50 Ω |
| Max Power | 50 W |
| Polarization | Linear / Circular |
| Connector | N-Female |
| Connector Position | Bottom |
| Operating Temp | -40 to +80 °C |
| Antenna Size | 450 × 450 × 40 mm |
| Antenna Weight | 2.5 kg |
| Radome Material | ABS |
| Radome Color | White |
Higher-gain antennas read farther but with a narrower beam; lower-gain antennas cover wider, closer zones. Dock doors, portals, and shelves each need different patterns — we map this during the site survey.
POXO antennas built for outdoor use carry industrial IP-rated housings suitable for gates, yards, and parking entries.
They use standard RF connectors and impedance, so they pair with POXO fixed readers and most third-party UHF readers.
Interested in this hardware model? Fill out the details below, and our RFID architects will share a customized proposal.
