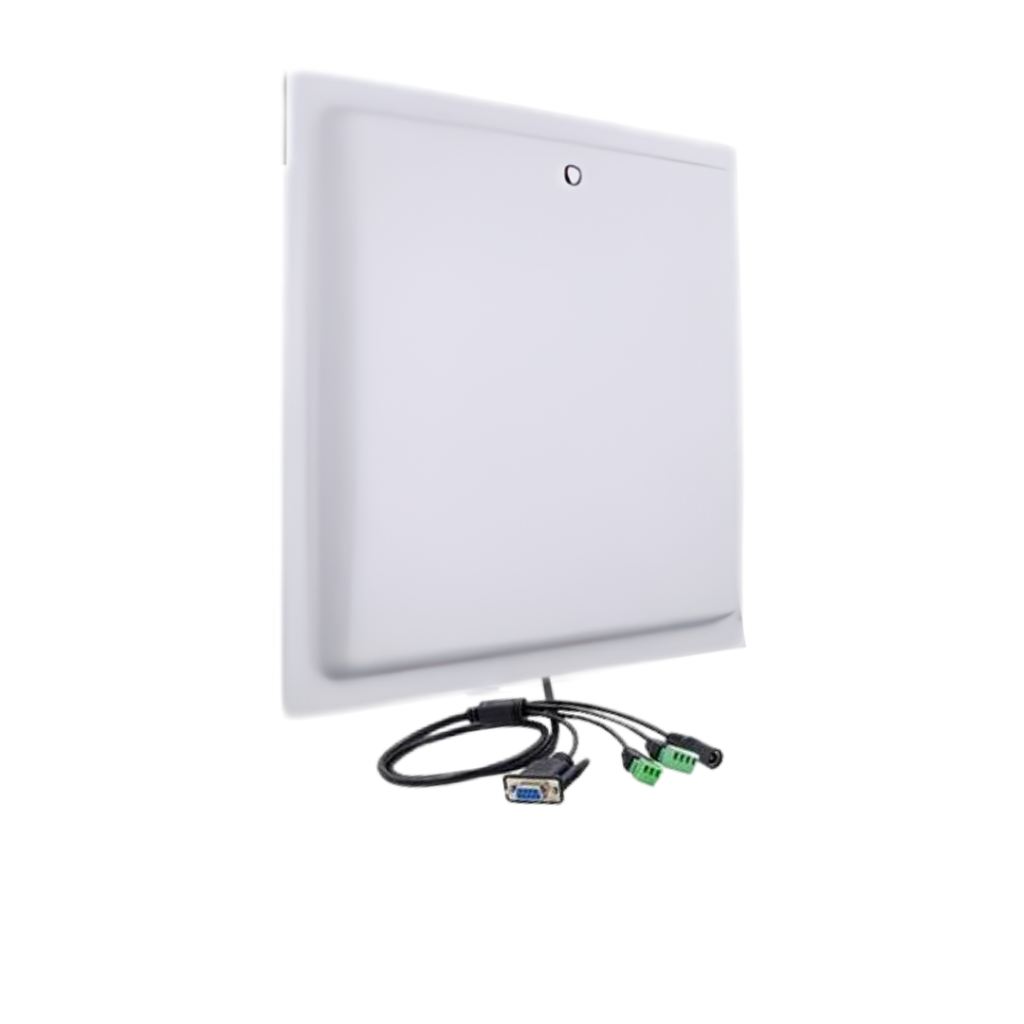

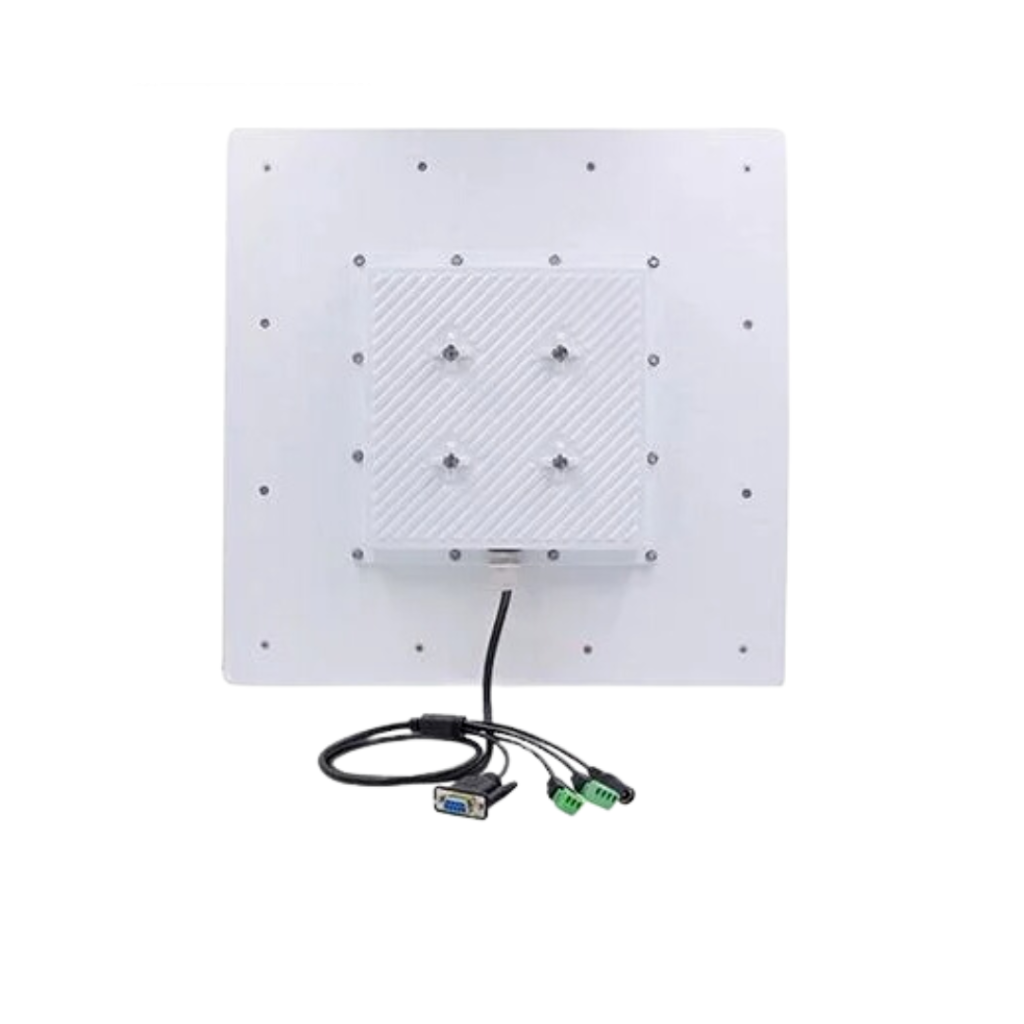

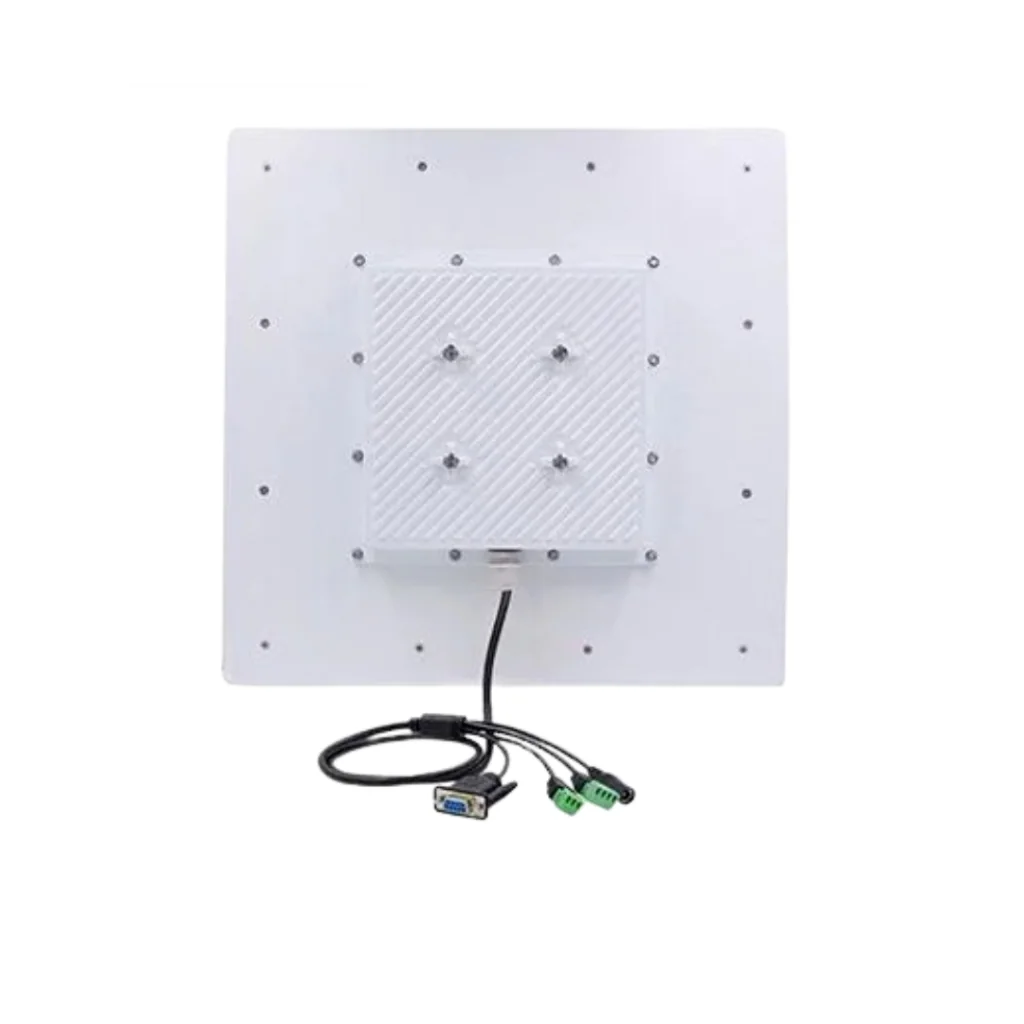

The P-RF90 Integrated RFID Reader is a high-performance device offering seamless tracking and data capture. Ideal for parking or access control solutions, movement tracking
| Parameter | Specification / Standard |
|---|---|
| Frequency | 865–868 MHz (India/EU) / 902–928 MHz (US) |
| Protocol Standard | ISO 18000-6C (EPC Gen 2) |
| Built-in Antenna | 12 dBi linear polarization |
| RF Output Power | Max 27 dBm (adjustable) |
| Reading Distance | Up to 25 m (ideal) (tag & environment dependent, adjustable) |
| Working Mode | Active / Trigger / Answer mode |
| Special Functions | Password mode, Mask mode, RSSI support |
| RSSI | Supported |
| Indicator | LED light — Red & Green LED + Buzzer |
| Standard Interface | RS232 (TTL / RS485), Wiegand 26, Relay |
| Optional Interface | TCP/IP (Ethernet), POE, Wi-Fi |
| Power Supply | DC 9V 3A / 12V 2A |
| Material | ABS + die-cast aluminium |
| Color | White |
| IP Protection | IP65 (waterproof & dustproof) |
| Dimensions | 445 × 445 × 80 mm |
| Net Weight | 3.1 kg |
| Storage Temp | -20 °C to +75 °C |
| SDK | Demo software, API, examples & user manuals |
| Development Languages | C#, Delphi, Java, Python, VB and other languages |
The P-RF90 Integrated RFID Reader is a high-performance device offering seamless tracking and data capture. Ideal for parking or access control solutions, movement tracking
| Frequency | 865–868 MHz (India/EU) / 902–928 MHz (US) |
| Protocol Standard | ISO 18000-6C (EPC Gen 2) |
| Built-in Antenna | 12 dBi linear polarization |
| RF Output Power | Max 27 dBm (adjustable) |
| Reading Distance | Up to 25 m (ideal) (tag & environment dependent, adjustable) |
| Working Mode | Active / Trigger / Answer mode |
| Special Functions | Password mode, Mask mode, RSSI support |
| RSSI | Supported |
| Indicator | LED light — Red & Green LED + Buzzer |
| Standard Interface | RS232 (TTL / RS485), Wiegand 26, Relay |
| Optional Interface | TCP/IP (Ethernet), POE, Wi-Fi |
| Power Supply | DC 9V 3A / 12V 2A |
| Material | ABS + die-cast aluminium |
| Color | White |
| IP Protection | IP65 (waterproof & dustproof) |
| Dimensions | 445 × 445 × 80 mm |
| Net Weight | 3.1 kg |
| Storage Temp | -20 °C to +75 °C |
| SDK | Demo software, API, examples & user manuals |
| Development Languages | C#, Delphi, Java, Python, VB and other languages |
It depends on the model — integrated readers have a built-in antenna, while multi-port fixed readers connect several external antennas to cover dock doors, portals, or conveyor lines. Our engineers size the antenna count during the site survey.
Yes. POXO fixed readers work with our middleware, which ships with SAP, Oracle, and Tally connectors plus REST APIs for custom systems, so read events post to your ERP in real time.
Tag type, antenna gain, mounting position, and the surrounding environment (metal, liquids, interference) all affect range. We validate read points on-site before go-live so quoted performance matches your floor.
Interested in this hardware model? Fill out the details below, and our RFID architects will share a customized proposal.
