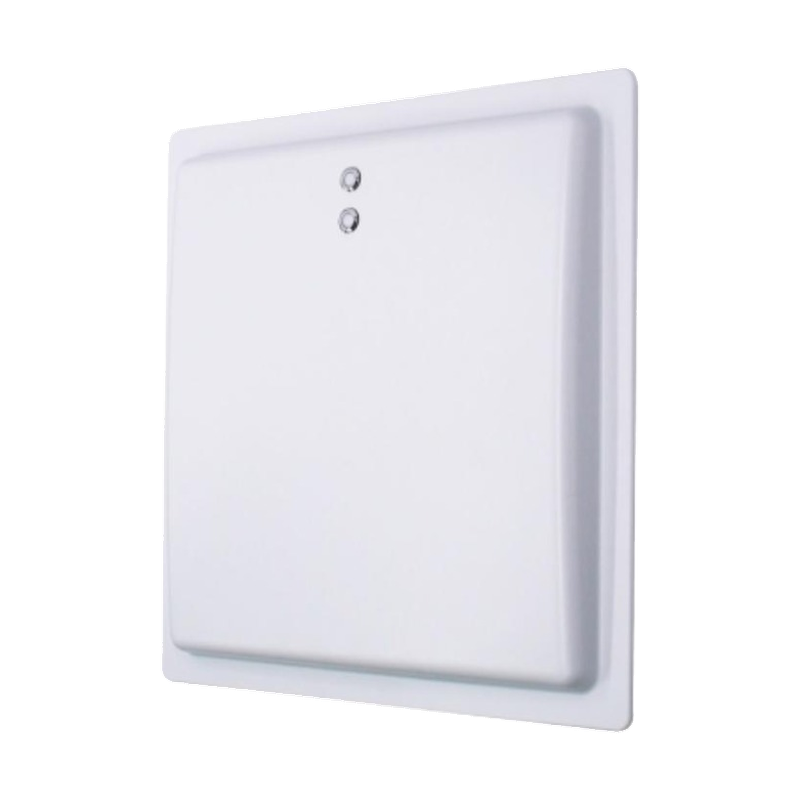

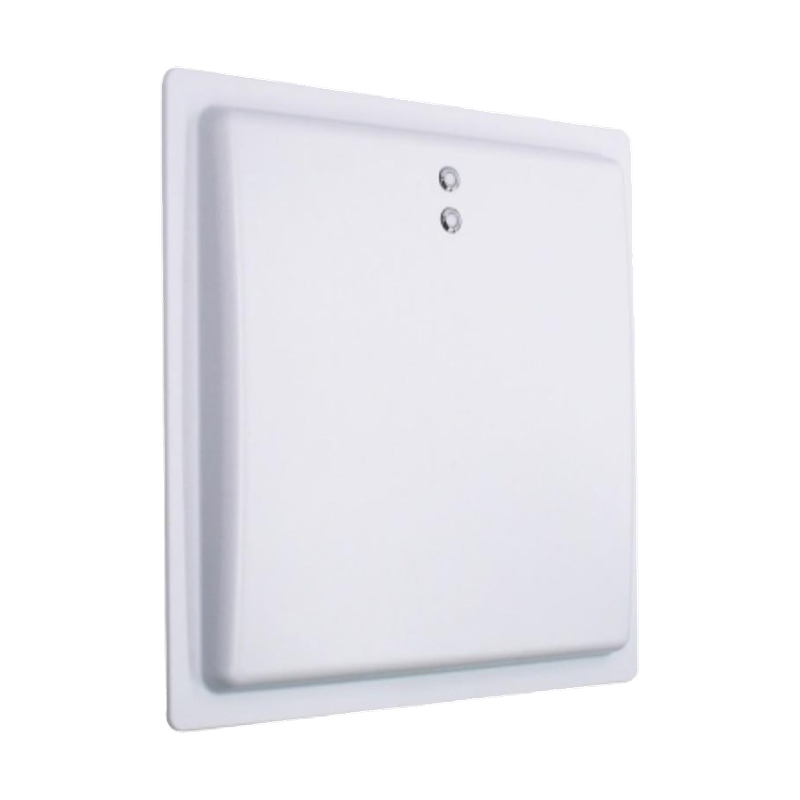

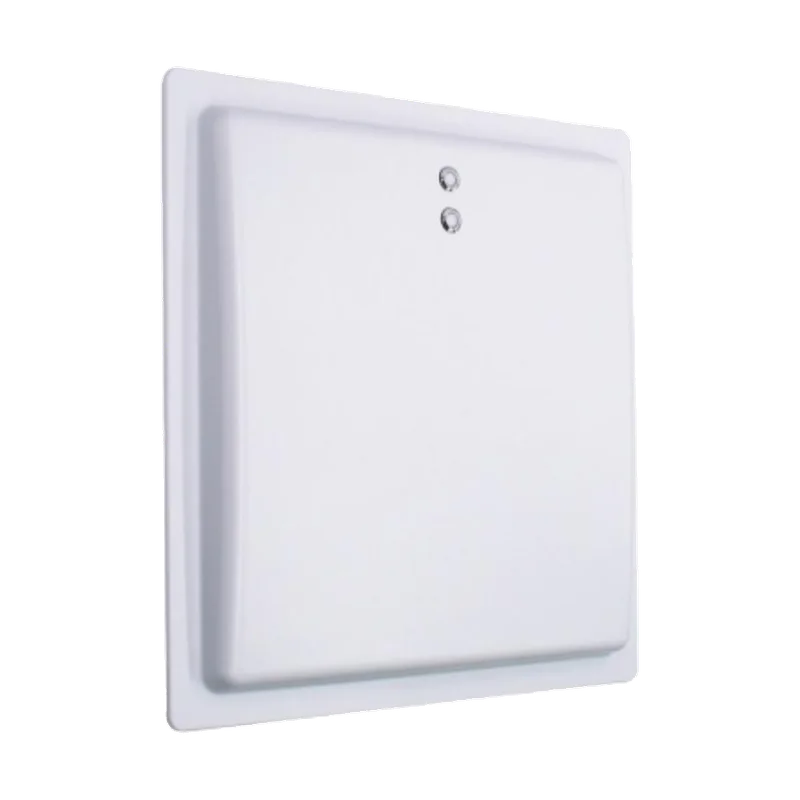

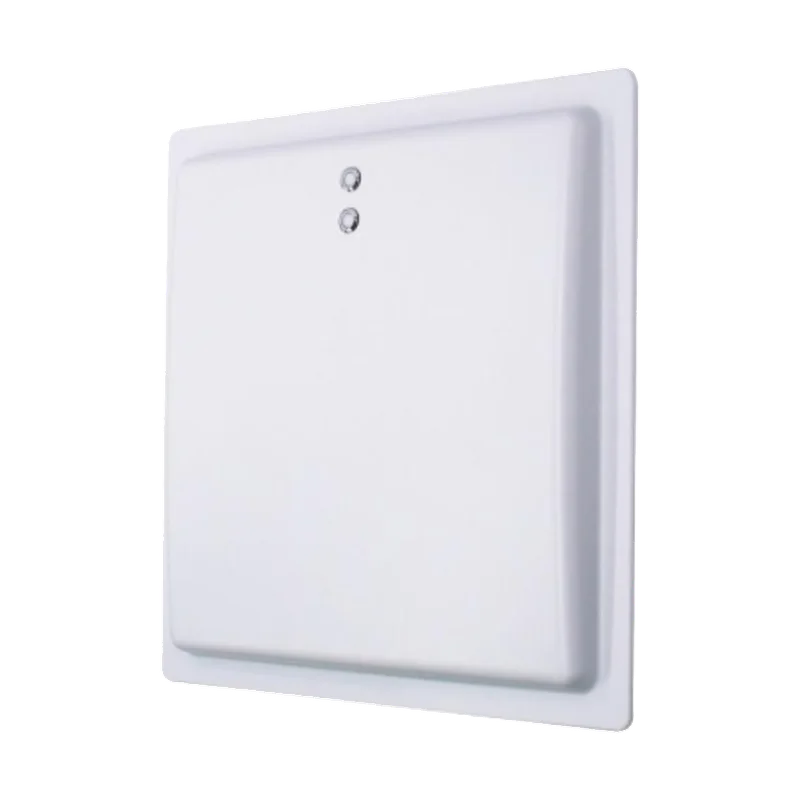

P-12 is a High-Performance, Long range UHF RFID Integrated Reader with a 12dBi Antenna, an RS232 interface, and a reading distance of up to 25 meters.
| Parameter | Specification / Standard |
|---|---|
| Frequency | 865–868 MHz (India/EU) / 902–928 MHz (US) |
| Protocol Standard | ISO 18000-6C (EPC Gen 2) |
| Built-in Antenna | 12 dBi polarization antenna |
| RF Output Power | 30 dBm (adjustable) |
| Reading Distance | Up to 20 m (ideal) (tag & environment dependent, adjustable) |
| Working Mode | Active / Trigger / Answer mode |
| Special Functions | Password mode, RSSI support |
| RSSI | Supported |
| Reading Speed | Up to 100 pieces/second |
| Antenna Polarisation | Circular/Linear |
| Indicator | LED light — Red & Green LED + Buzzer |
| Standard Interface | RS232 (TTL), Wiegand 26 |
| Optional Interface | TCP/IP (Ethernet), POE, Wi-Fi |
| Power Supply | DC 9V 3A / 12V 2A |
| Material | ABS + die-cast aluminium |
| Color | White |
| IP Protection | IP65 (waterproof & dustproof) |
| Dimensions | 445 × 445 × 55 mm |
| Net Weight | 3.5 kg |
| Operating Temp | -10 °C to +55 °C |
| Storage Temp | -20 °C to +75 °C |
| Package Size | 600 × 500 × 120 mm |
| Package Gross Weight | 5.0 kg |
| SDK | Demo software, API, examples & user manuals |
| Development Languages | C#, Delphi, Java, Python, VB and other languages |
P-12 is a High-Performance, Long range UHF RFID Integrated Reader with a 12dBi Antenna, an RS232 interface, and a reading distance of up to 25 meters.
| Frequency | 865–868 MHz (India/EU) / 902–928 MHz (US) |
| Protocol Standard | ISO 18000-6C (EPC Gen 2) |
| Built-in Antenna | 12 dBi polarization antenna |
| RF Output Power | 30 dBm (adjustable) |
| Reading Distance | Up to 20 m (ideal) (tag & environment dependent, adjustable) |
| Working Mode | Active / Trigger / Answer mode |
| Special Functions | Password mode, RSSI support |
| RSSI | Supported |
| Reading Speed | Up to 100 pieces/second |
| Antenna Polarisation | Circular/Linear |
| Indicator | LED light — Red & Green LED + Buzzer |
| Standard Interface | RS232 (TTL), Wiegand 26 |
| Optional Interface | TCP/IP (Ethernet), POE, Wi-Fi |
| Power Supply | DC 9V 3A / 12V 2A |
| Material | ABS + die-cast aluminium |
| Color | White |
| IP Protection | IP65 (waterproof & dustproof) |
| Dimensions | 445 × 445 × 55 mm |
| Net Weight | 3.5 kg |
| Operating Temp | -10 °C to +55 °C |
| Storage Temp | -20 °C to +75 °C |
| Package Size | 600 × 500 × 120 mm |
| Package Gross Weight | 5.0 kg |
| SDK | Demo software, API, examples & user manuals |
| Development Languages | C#, Delphi, Java, Python, VB and other languages |
It depends on the model — integrated readers have a built-in antenna, while multi-port fixed readers connect several external antennas to cover dock doors, portals, or conveyor lines. Our engineers size the antenna count during the site survey.
Yes. POXO fixed readers work with our middleware, which ships with SAP, Oracle, and Tally connectors plus REST APIs for custom systems, so read events post to your ERP in real time.
Tag type, antenna gain, mounting position, and the surrounding environment (metal, liquids, interference) all affect range. We validate read points on-site before go-live so quoted performance matches your floor.
Interested in this hardware model? Fill out the details below, and our RFID architects will share a customized proposal.

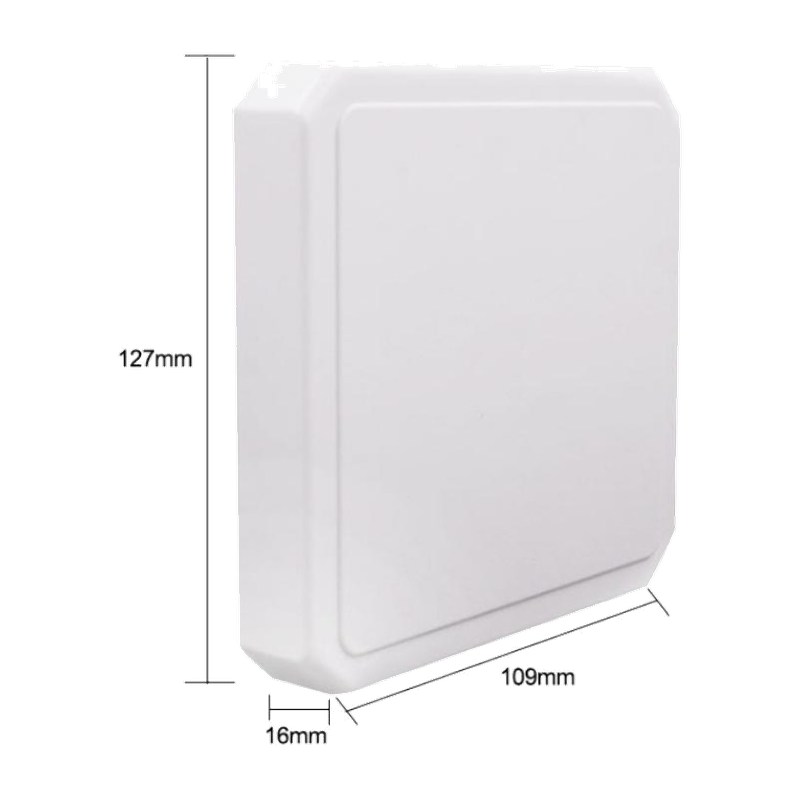

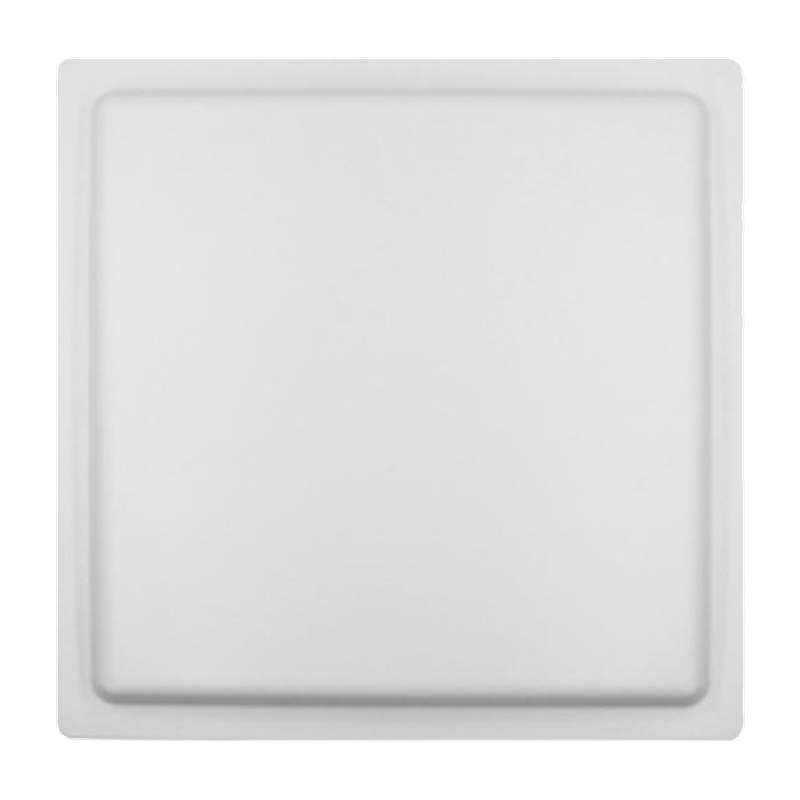

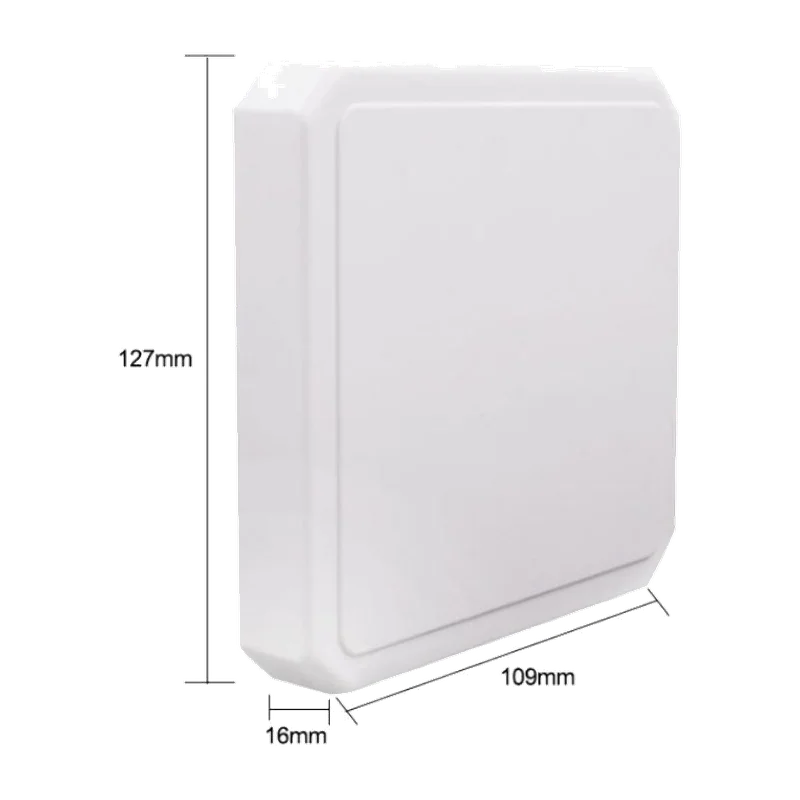

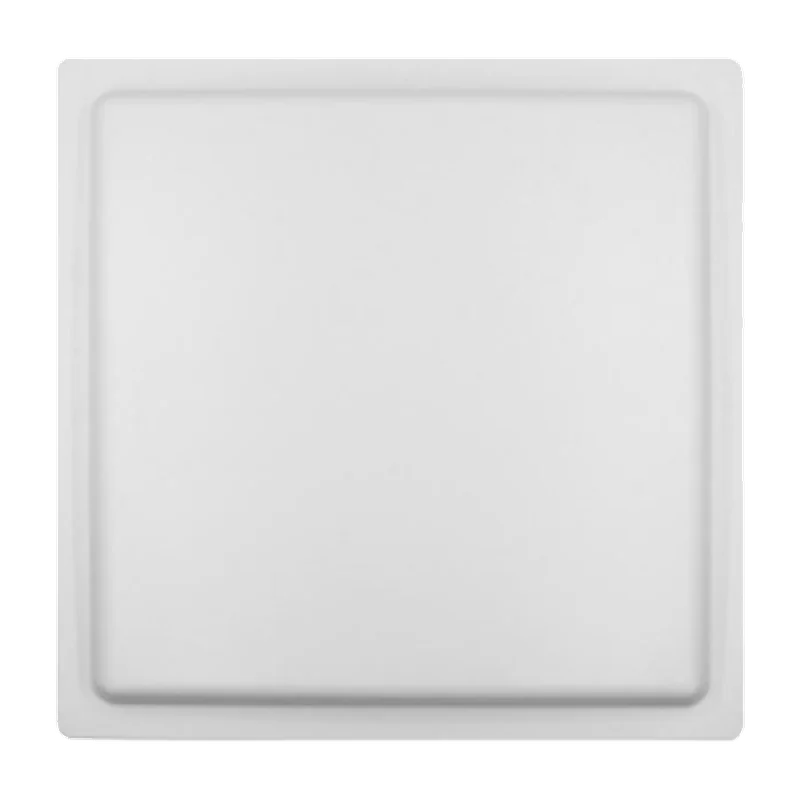

Hardware that pairs with the Integrated RFID Reader (P-12) in a complete POXO system.
