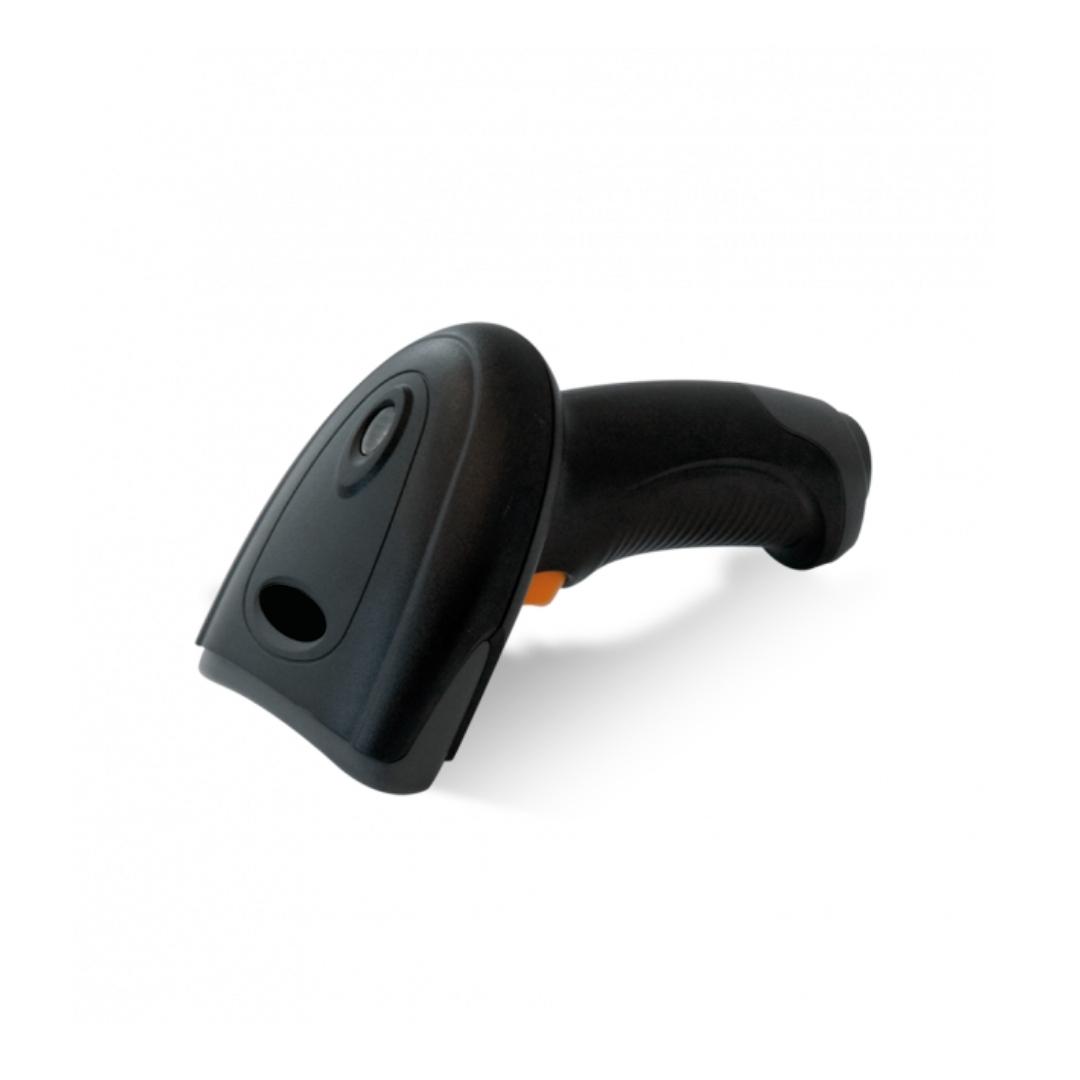

The HR11 Aringa is a lightweight, ergonomic 1D barcode scanner with a 2500-pixel linear imager that reads from paper or screen. Built for intensive handheld scanning with 1.5 m drop resistance and IP42 sealing.
| Parameter | Specification / Standard |
|---|---|
| Model No. | HR11 |
| Type | Handheld |
| Image Sensor | 2500-pixel linear imager |
| Illumination | Red LED (620–630 nm) |
| Aiming | 40–480 mm |
| SDK | USB, Android/Windows Bluetooth, Android/iOS |
| Warranty | 5 years |
| Frequency | N/A (Linear Imager) |
| Read Range | Up to 30 cm (focus depth) |
| DOF — EAN-13 (13 mil) | 80–180 mm |
| Minimal Print Contrast | 20% |
| Scan Angle Pitch | ±60° |
| Scan Angle Skew | ±70° |
| Field of View (H) | 53° |
| Scan Modes | Manual, Batch, Auto, Blink, Sense, Continuous, Command Trigger |
| Scan Rate | 300 scans/second |
| Dimensions | 145 × 101 × 68 mm |
| Weight | 120 g |
| Material | PC, ABS |
| Buttons | Trigger |
| Interfaces | RS-232, USB |
| Notifications | Beep, LED indicator |
| Input Voltage | 5VDC ±5% |
| Operating Current | 70.4 mA (typical), 96.8 mA (max) |
| Standby Current | 57.6 mA |
| Power Consumption | 352 mW (typical) |
| Power Supply | DC5V 1.5A in / AC100–240V 50–60Hz out |
| Configuration Tool | EasySet |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5% to 95% (non-condensing) |
| ESD | ±8 kV (direct), ±16 kV (air discharge) |
| Drop Resistance | 1.5 m |
| IP Rating | IP42 |
| Certifications | Certified |
The HR11 Aringa is a lightweight, ergonomic 1D barcode scanner with a 2500-pixel linear imager that reads from paper or screen. Built for intensive handheld scanning with 1.5 m drop resistance and IP42 sealing.
| Model No. | HR11 |
| Type | Handheld |
| Image Sensor | 2500-pixel linear imager |
| Illumination | Red LED (620–630 nm) |
| Aiming | 40–480 mm |
| SDK | USB, Android/Windows Bluetooth, Android/iOS |
| Warranty | 5 years |
| Frequency | N/A (Linear Imager) |
| Read Range | Up to 30 cm (focus depth) |
| DOF — EAN-13 (13 mil) | 80–180 mm |
| Minimal Print Contrast | 20% |
| Scan Angle Pitch | ±60° |
| Scan Angle Skew | ±70° |
| Field of View (H) | 53° |
| Scan Modes | Manual, Batch, Auto, Blink, Sense, Continuous, Command Trigger |
| Scan Rate | 300 scans/second |
| Dimensions | 145 × 101 × 68 mm |
| Weight | 120 g |
| Material | PC, ABS |
| Buttons | Trigger |
| Interfaces | RS-232, USB |
| Notifications | Beep, LED indicator |
| Input Voltage | 5VDC ±5% |
| Operating Current | 70.4 mA (typical), 96.8 mA (max) |
| Standby Current | 57.6 mA |
| Power Consumption | 352 mW (typical) |
| Power Supply | DC5V 1.5A in / AC100–240V 50–60Hz out |
| Configuration Tool | EasySet |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5% to 95% (non-condensing) |
| ESD | ±8 kV (direct), ±16 kV (air discharge) |
| Drop Resistance | 1.5 m |
| IP Rating | IP42 |
| Certifications | Certified |
No. POXO barcode scanners are plug-and-play USB HID devices — they behave like a keyboard, so they work with any POS, ERP, or browser form without installs.
2D imager models read from phone screens and tolerate scuffed or low-contrast labels far better than laser scanners.
Handhelds suit counters and spot checks; fixed-mount scanners suit conveyor and kiosk installs where items pass the scanner. We'll recommend the right form factor for your workflow.
