The NQuire 1000 Manta II is a 10.1-inch Android interactive micro-kiosk built around a powerful 2D megapixel barcode scanner with a 20-degree scan angle for comfortable scanning of larger products (also available scanner-free). It combines a 10-point capacitive touchscreen, IP54-rated front panel, VESA 75 mounting, and optional 4G, NFC, RFID, and magnetic card reader modules — all managed via Ndevor, SOTI, or Airwatch MDM.
| Parameter | Specification / Standard |
|---|---|
| Model No. | NQuire 1000 Manta |
| Processor | RK3368, Octa-core Cortex-A53, up to 1.5 GHz; PowerVR G6110 GPU, up to 600 MHz |
| Operating System | Android 7.1 |
| SDK | USB, Android/Windows Bluetooth, Android/iOS |
| MDM | Ndevor, SOTI, Airwatch (certified) |
| Terminal Emulation | IVANTI (compatible) |
| Warranty | 2 years |
| Display | 10.1" WXGA 1280×800 TFT LCD |
| Touch Panel | 10-point capacitive |
| VESA Standard | Metal fitting mounting screw holes, 75×75 mm |
| 1D Symbologies | All major 1D symbologies |
| 2D Symbologies | All major 2D symbologies |
| Image Sensor | CMOS 1280×800 |
| Illumination | White LED (625 ±10 nm) |
| Aiming | Laser diode (625 ±10 nm) |
| Scan Mode | Sense mode |
| Scan Rate | 60 fps |
| Flash | 8 GB eMMC |
| RAM | 2 GB DDR3 |
| Storage Expansion | SD card slot |
| WLAN | IEEE 802.11 b/g/n/ac (2.4 GHz), IEEE 802.11 a/b/g/n/ac (5 GHz) |
| Bluetooth | 4.1 |
| RFID | Optional |
| Interfaces | USB 2.0 (Type-A), GPIO port, 2× POGO-Pin connector |
| Network | RJ45 Ethernet, 10/100/1000BASE-T (PoE) |
| Dimensions | 252 × 184 × 33 mm |
| Weight | 615 g |
| Material | PC, ABS |
| Camera | Front 5.0 MP |
| Audio | 3.5mm Headset+MIC jack, 2× integrated speakers, 8Ω/1.3W |
| Buttons | Vol+/Vol-, Up/Down, Exit, Power switch |
| Sensors | G-Sensor |
| Input Voltage | DC 12V ±5% |
| Power Supply | DC 12V, 2A input / AC 100–240V, 50–60 Hz output |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 5% to 90% (non-condensing) |
| IP Rating | IP54 (front panel only) |
| Certifications | Certified |
| Modules | 4G, Magnetic card reader, NFC reader, RFID reader |
| Mounting | Desktop stand VESA75, Adjustable wall mount VESA75 |
| Standard Included | Multi-plug AC/DC adapter with power cord, adjustable wall mount bracket VESA75 |
The NQuire 1000 Manta II is a 10.1-inch Android interactive micro-kiosk built around a powerful 2D megapixel barcode scanner with a 20-degree scan angle for comfortable scanning of larger products (also available scanner-free). It combines a 10-point capacitive touchscreen, IP54-rated front panel, VESA 75 mounting, and optional 4G, NFC, RFID, and magnetic card reader modules — all managed via Ndevor, SOTI, or Airwatch MDM.
| Model No. | NQuire 1000 Manta |
| Processor | RK3368, Octa-core Cortex-A53, up to 1.5 GHz; PowerVR G6110 GPU, up to 600 MHz |
| Operating System | Android 7.1 |
| SDK | USB, Android/Windows Bluetooth, Android/iOS |
| MDM | Ndevor, SOTI, Airwatch (certified) |
| Terminal Emulation | IVANTI (compatible) |
| Warranty | 2 years |
| Display | 10.1" WXGA 1280×800 TFT LCD |
| Touch Panel | 10-point capacitive |
| VESA Standard | Metal fitting mounting screw holes, 75×75 mm |
| 1D Symbologies | All major 1D symbologies |
| 2D Symbologies | All major 2D symbologies |
| Image Sensor | CMOS 1280×800 |
| Illumination | White LED (625 ±10 nm) |
| Aiming | Laser diode (625 ±10 nm) |
| Scan Mode | Sense mode |
| Scan Rate | 60 fps |
| Flash | 8 GB eMMC |
| RAM | 2 GB DDR3 |
| Storage Expansion | SD card slot |
| WLAN | IEEE 802.11 b/g/n/ac (2.4 GHz), IEEE 802.11 a/b/g/n/ac (5 GHz) |
| Bluetooth | 4.1 |
| RFID | Optional |
| Interfaces | USB 2.0 (Type-A), GPIO port, 2× POGO-Pin connector |
| Network | RJ45 Ethernet, 10/100/1000BASE-T (PoE) |
| Dimensions | 252 × 184 × 33 mm |
| Weight | 615 g |
| Material | PC, ABS |
| Camera | Front 5.0 MP |
| Audio | 3.5mm Headset+MIC jack, 2× integrated speakers, 8Ω/1.3W |
| Buttons | Vol+/Vol-, Up/Down, Exit, Power switch |
| Sensors | G-Sensor |
| Input Voltage | DC 12V ±5% |
| Power Supply | DC 12V, 2A input / AC 100–240V, 50–60 Hz output |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 5% to 90% (non-condensing) |
| IP Rating | IP54 (front panel only) |
| Certifications | Certified |
| Modules | 4G, Magnetic card reader, NFC reader, RFID reader |
| Mounting | Desktop stand VESA75, Adjustable wall mount VESA75 |
| Standard Included | Multi-plug AC/DC adapter with power cord, adjustable wall mount bracket VESA75 |
Price checking, self-service lookups, wayfinding, and queue-busting in retail; catalogue search and self-issue in libraries; and visitor self-registration in offices.
Yes. Android-based kiosks run your web or native app in kiosk mode, with remote management and OTA updates.

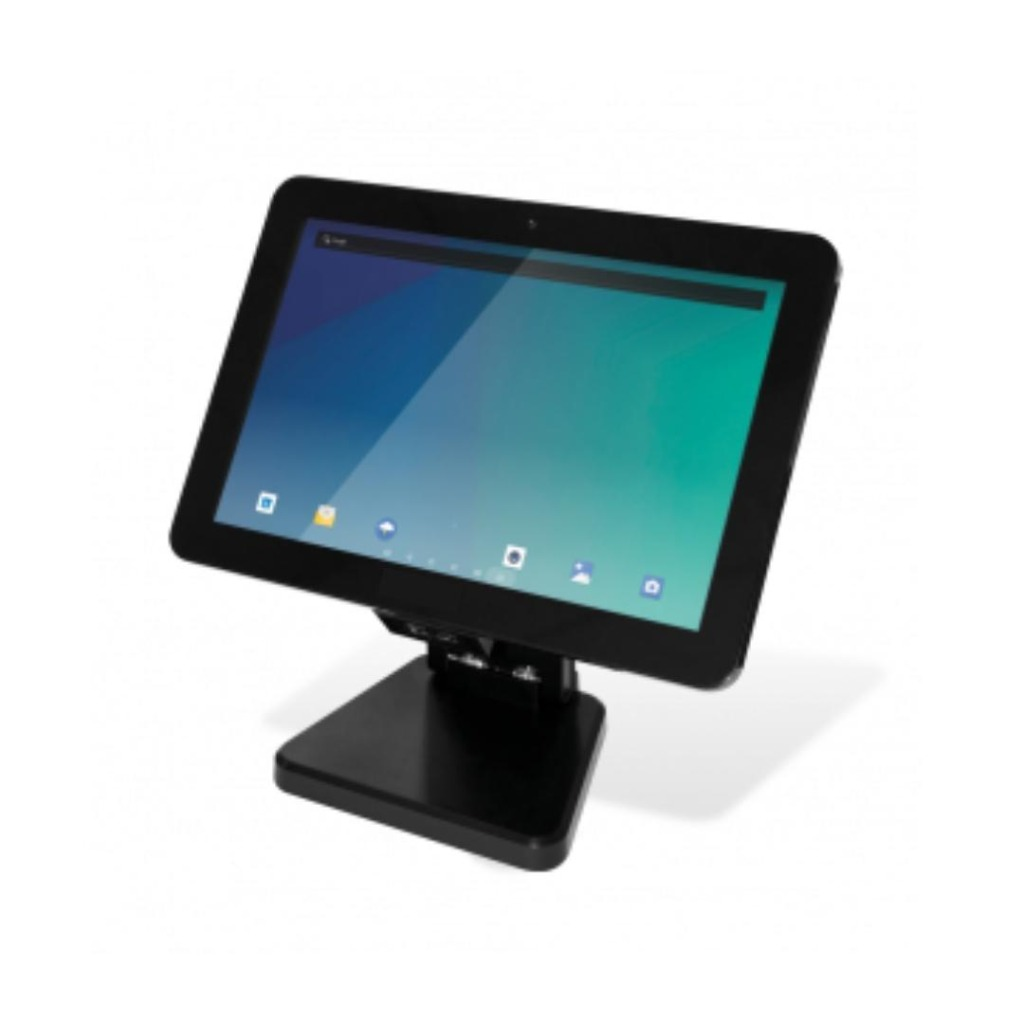

Wall-mount, countertop, and pole/stand options are available depending on the model — see the gallery for mounting variants.
Interested in this hardware model? Fill out the details below, and our RFID architects will share a customized proposal.
Hardware that pairs with the NQuire 1000 Manta II Interactive Micro Kiosk (NQ1000) in a complete POXO system.
